Daido DRM1

Material info

Chemical composition %

	C	Si	Mn	Cr	Mo	W	V	Co
Typical analysis wt-%	0.5	0.2	0.5	4.2	1.0	3.0	1.3	2.0

	Treatment temperatures			hardness
Hot forming	Annealing	Hardening	Tempering	Annealed	hardened
(please inquire)	800 - 880°C slow cooling	1,100 - 1,140°C Cooling in oil, gas or salt bath	550 - 620°C min. 2x tempering, air cooling	≤ 235 HB	56 – 58 HRC

Physical properties
Thermal expansion coefficient [10^-6/K]	20 - 100°C	20 - 200°C	20 - 300°C	20 - 400°C	20 - 500°C	20 - 600°C	20 - 700°C	20 - 800°C
Thermal expansion coefficient [10^-6/K]	11.2	11.4	11.7	11.9	12.2	12.4	12.7	12.3
Thermal conductivity [W/mK]	25°C	200°C	300°C	400°C	500°C	600°C	700°C
Thermal conductivity [W/mK]	22.4	26.3	27.3	28.6	28.4	29.1	28.8
specific heat [J/kgK]	25°C	200°C	300°C	400°C	500°C	600°C	700°C
specific heat [J/kgK]	413	487	519	562	616	705	840

Young's modulus = 210 GPa, sample hardened at 1,140°C, 2x tempered at 560°C

Microstructure

DRM1

(in the center of the bar ∅ 100mm)

Conventional steel

(Daido)

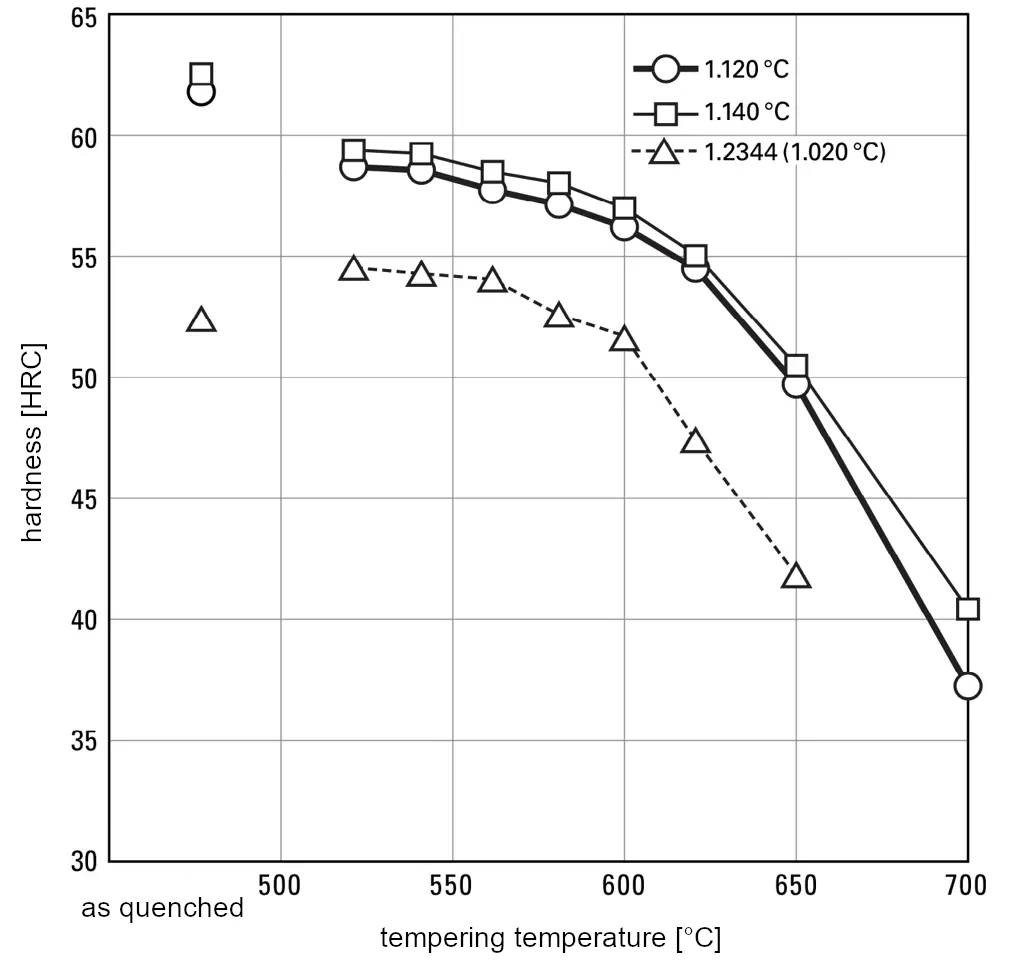

Tempering treatment

Specimen: square 15 mm, oil quenching, tempering with air cooling

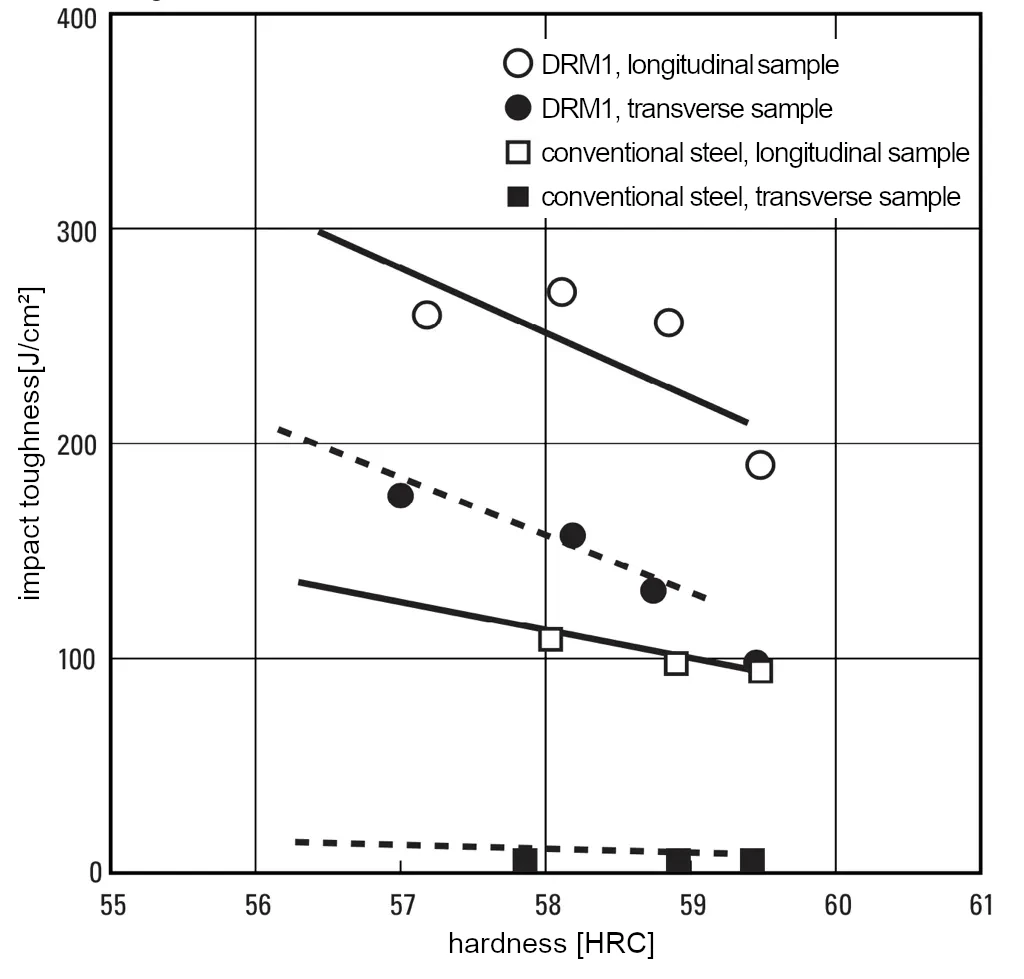

Impact toughness

Specimens: taken from bar steel, in the center of ∅ 100 mm, U-notched specimen

	Heat treatment
	Hardening	Tempering
DRM1	1,140°C, oil hardened	540 - 600°C, double tempered
Conventional steel	1,120°C, oil hardened	540 - 600°C, double tempered

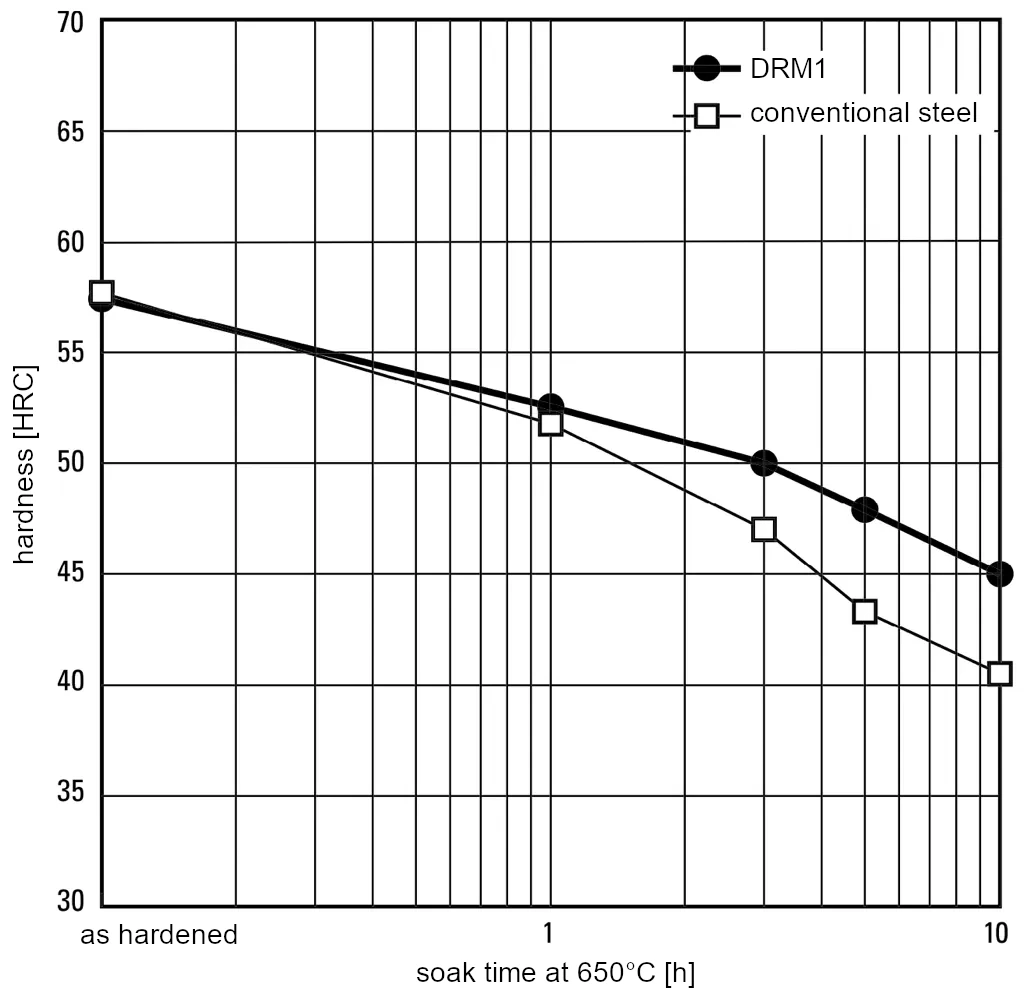

Tempering resistance over time

Tempering resistance of the matrix hot-work high-speed steel DRM1 over time

	Heat treatment
	Hardening	Tempering
DRM1	1,140°C, oil hardened	600°C, double tempered
Conventional steel	1,120°C, oil hardened	610°C, double tempered

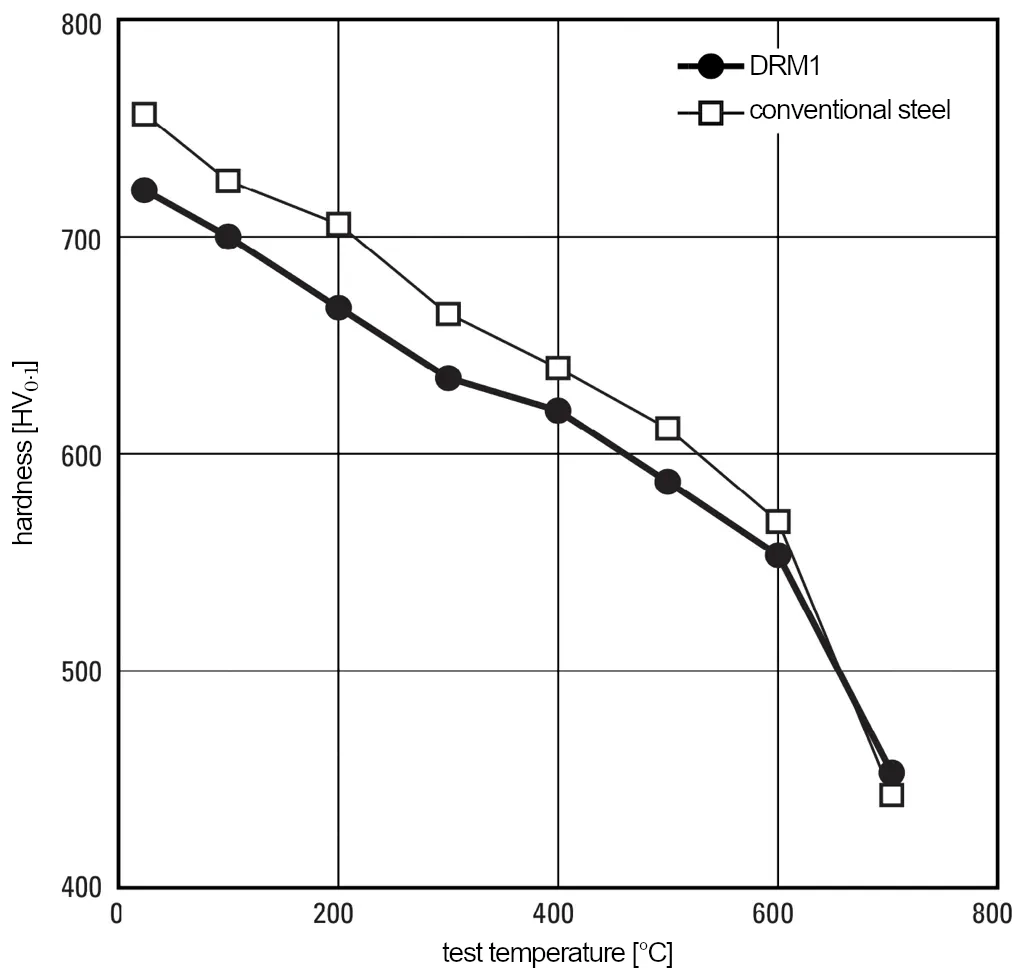

Hardness at elevated temperatures

Hardness of the matrix high-speed tool steel DRM1 at elevated temperatures

	Heat treatment
	Hardening	Tempering
DRM1	1,140°C, oil hardened	560°C, double tempered
Conventional steel	1,140°C, oil hardened	560°C, double tempered

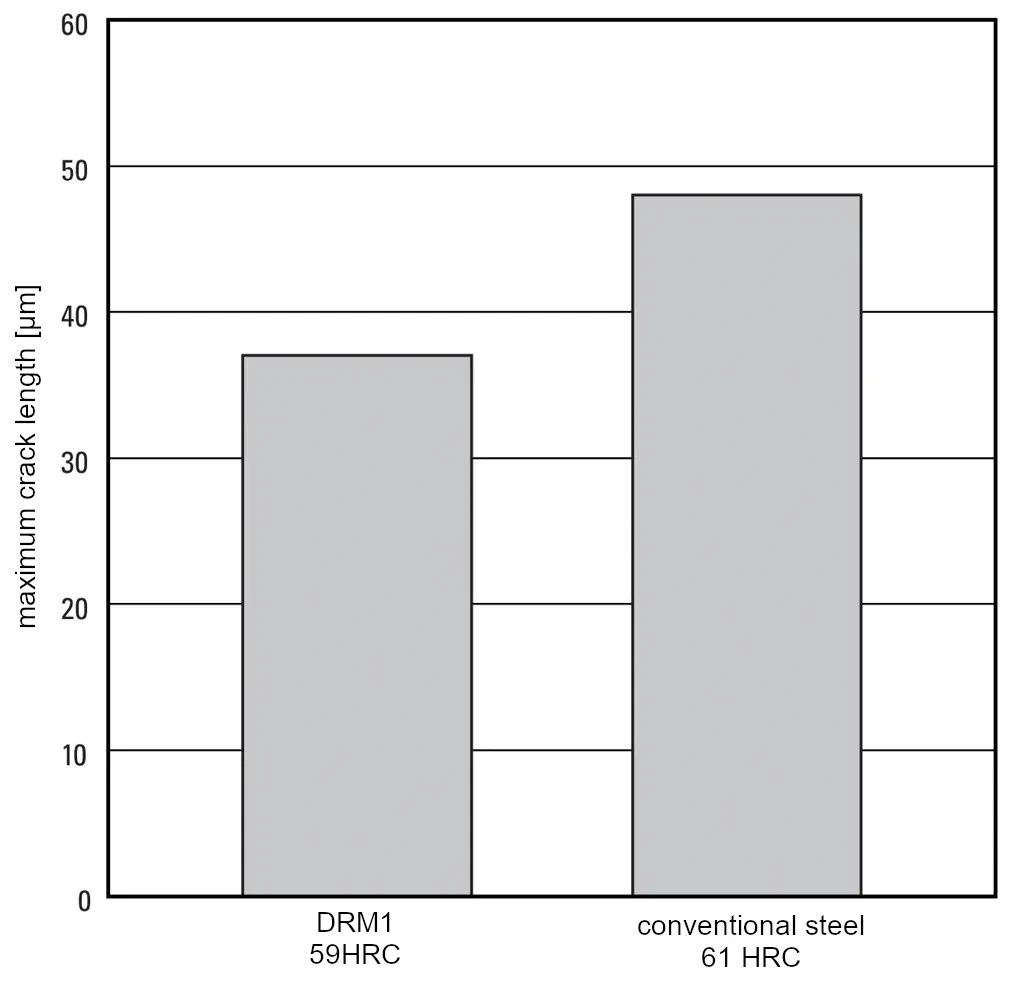

Fire crack resistance

Specimen: ∅ 15 mm, 10 mm thick

Heat check resistance of the matrix high-speed tool steel DRM1

	Heat treatment
	Hardening	Tempering
DRM1	1,140°C, oil hardened	560°C, double tempered
Conventional steel	1,140°C, oil hardened	560°C, double tempered
Test method	Heat inductively 1,000x to 700°C and cool to 20°C

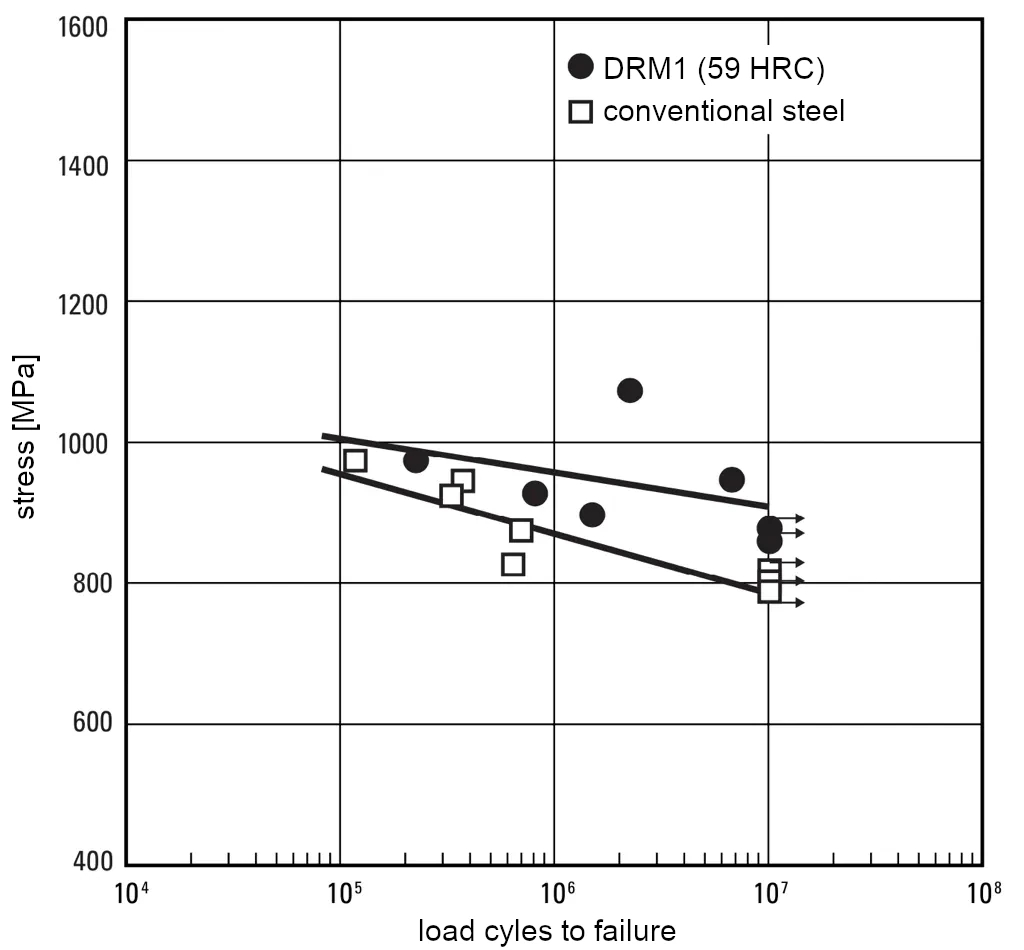

Fatigue strength / Material fatigue

Specimens: from the center of a bar steel ∅ 100 mm

Fatigue strength of the matrix high-speed tool steel DRM1

	Heat treatment
	Hardening	Tempering
DRM1	1,140°C, oil hardened	560°C, double tempered
Conventional steel	1,140°C, oil hardened	560°C, double tempered
Test method	Wöhler test at room temperature

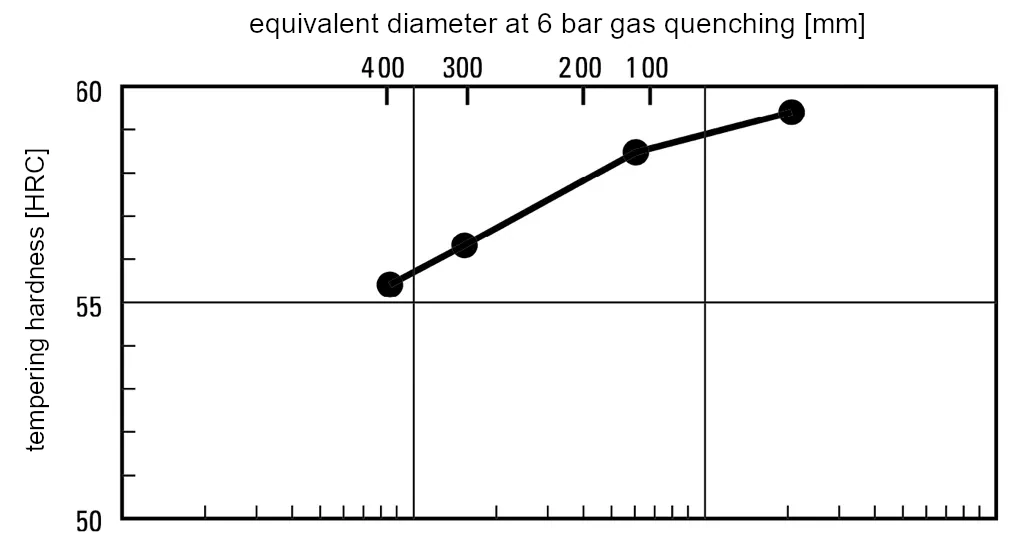

Hardenability

Sample: round steel Ø 100 mm

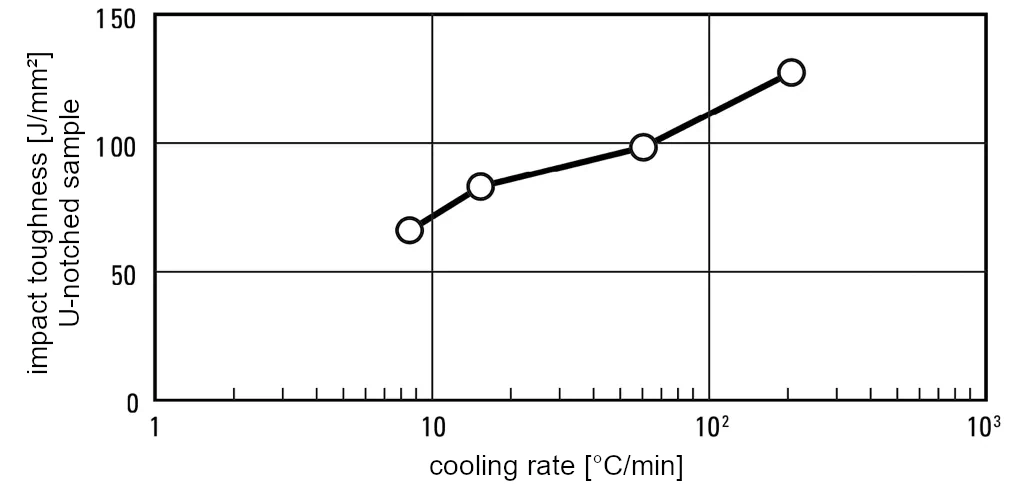

Hardenability and notch impact strength of the matrix hot-work high-speed steel DRM1

	Heat treatment
	Hardening	Tempering
DRM1	1,140°C, 200°C/min corresponding to oil hardening	560°C, double tempered

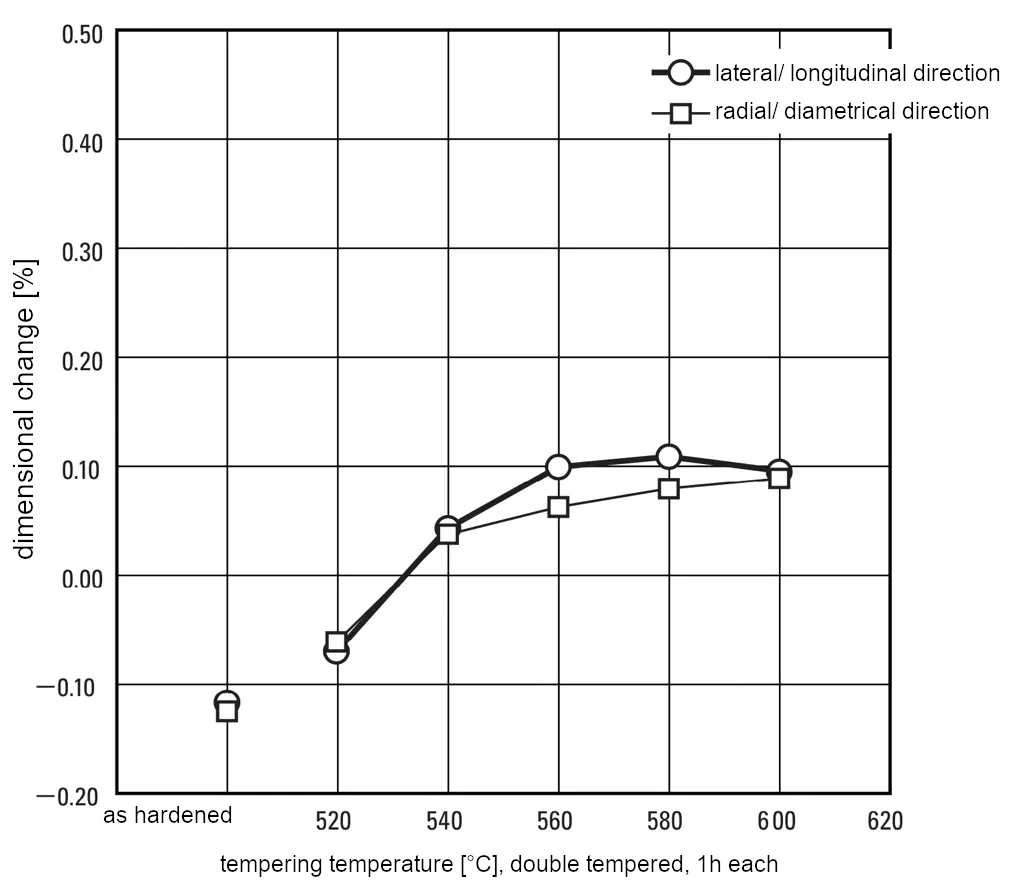

Dimensional change during hardening

Specimens: bar steel ∅ 100 mm x 60 mm length

Dimensional change of the matrix high-speed tool steel DRM1 during hardening

	Heat treatment
	Hardening
DRM1	1,140°C, oil hardened

Hardening process

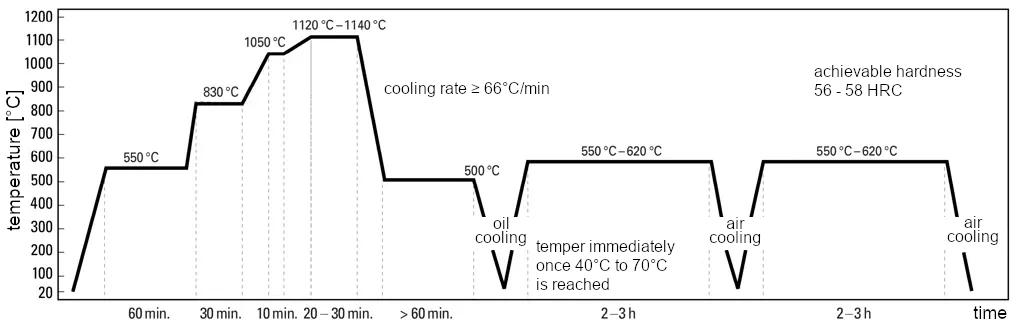

Salt bath

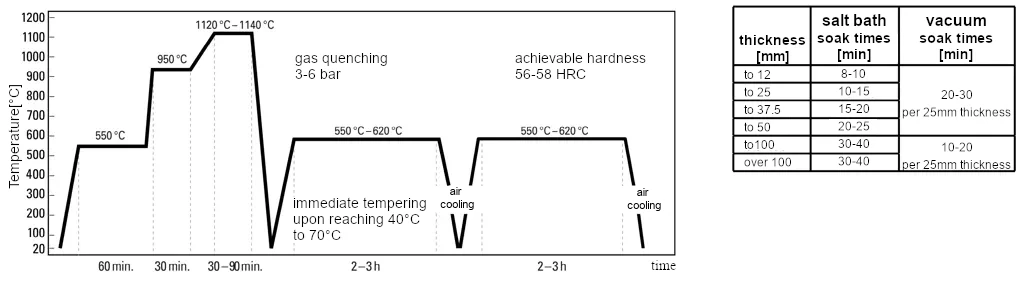

Vacuum

Nitriding

Example of the microstructure of a nitrided surface after the PS process from Daido Amistar.

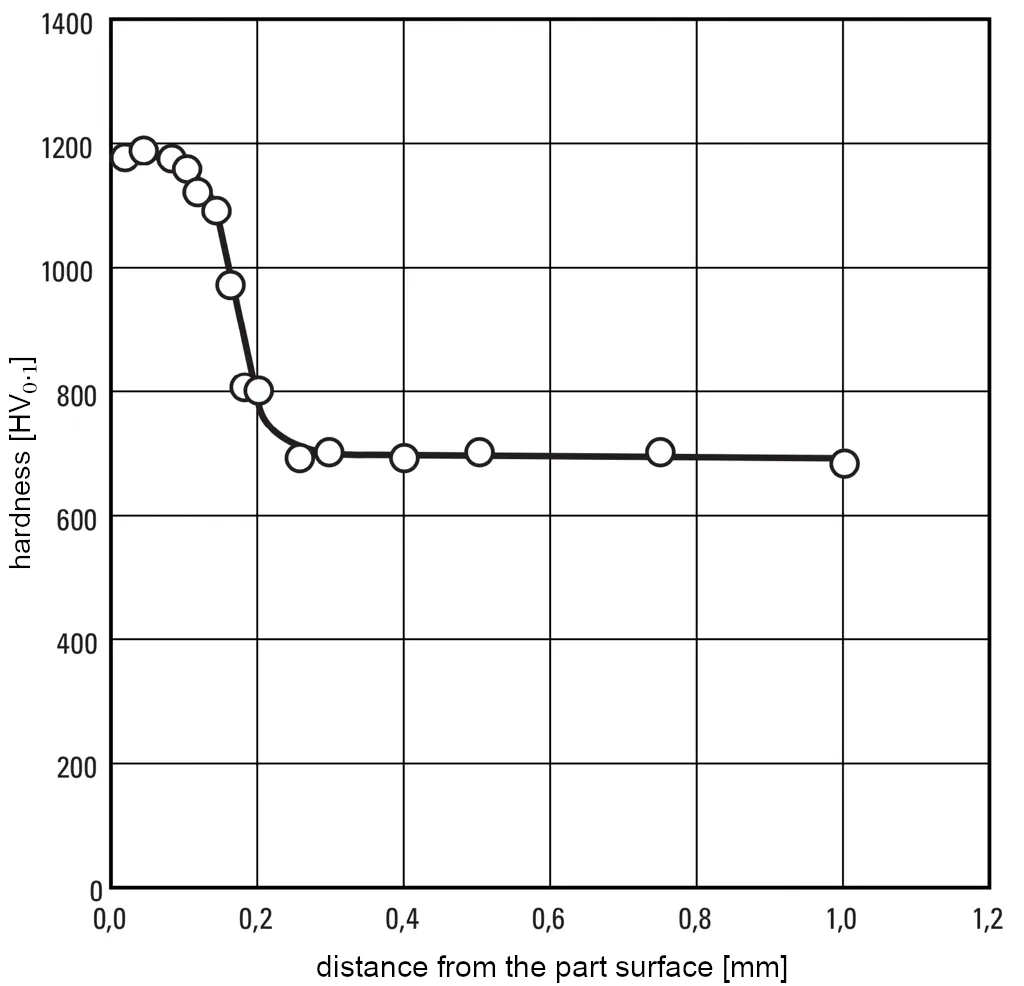

Hardness profile after nitriding

The surface hardness reaches 1,200 HV with NHD = 0.2 mm.

The values given are always representative technical values based on our investigations. Unless otherwise stated, they do not constitute guarantees. Please consult us for individual cases.
