Daido DRM3

Material info

Chemical composition %

	C	Si	Mn	Cr	Mo	W	V
Typical analysis wt-%	0.8	0.7	0.3	5.4	4.5	1.0	1.2

	Treatment temperatures			hardness
Hot forming	Annealing	Hardening	Tempering	Annealed	working hardness
(please inquire)	800 - 880°C slow cooling (≤ 20/°C/min)	1,100 - 1,140°C Cooling in oil, gas or salt bath	550 - 620°C min. 2x tempering, air cooling	≤ 235 HB	62 - 66 HRC

Physical properties
Thermal expansion coefficient [10^-6/K]	20 - 100°C	20 - 200°C	20 - 300°C	20 - 400°C	20 - 500°C	20 - 600°C
Thermal expansion coefficient [10^-6/K]	11.1	11.5	11.9	12.2	12.4	12.7
Thermal conductivity [W/mK]	25°C	200°C	300°C	400°C	500°C	600°C
Thermal conductivity [W/mK]	18	21.5	23.1	24.4	25.2	26.0
specific heat [J/kgK]	25°C	200°C	300°C	400°C	500°C	600°C
specific heat [J/kgK]	424	480	520	560	698	830

Young's modulus = 210 GPa, sample hardened at 1,140°C, 2x tempered at 560°C

Microstructure

DRM3

(in the center of the bar ∅ 100 mm)

Conventional high-speed steel

(Daido)

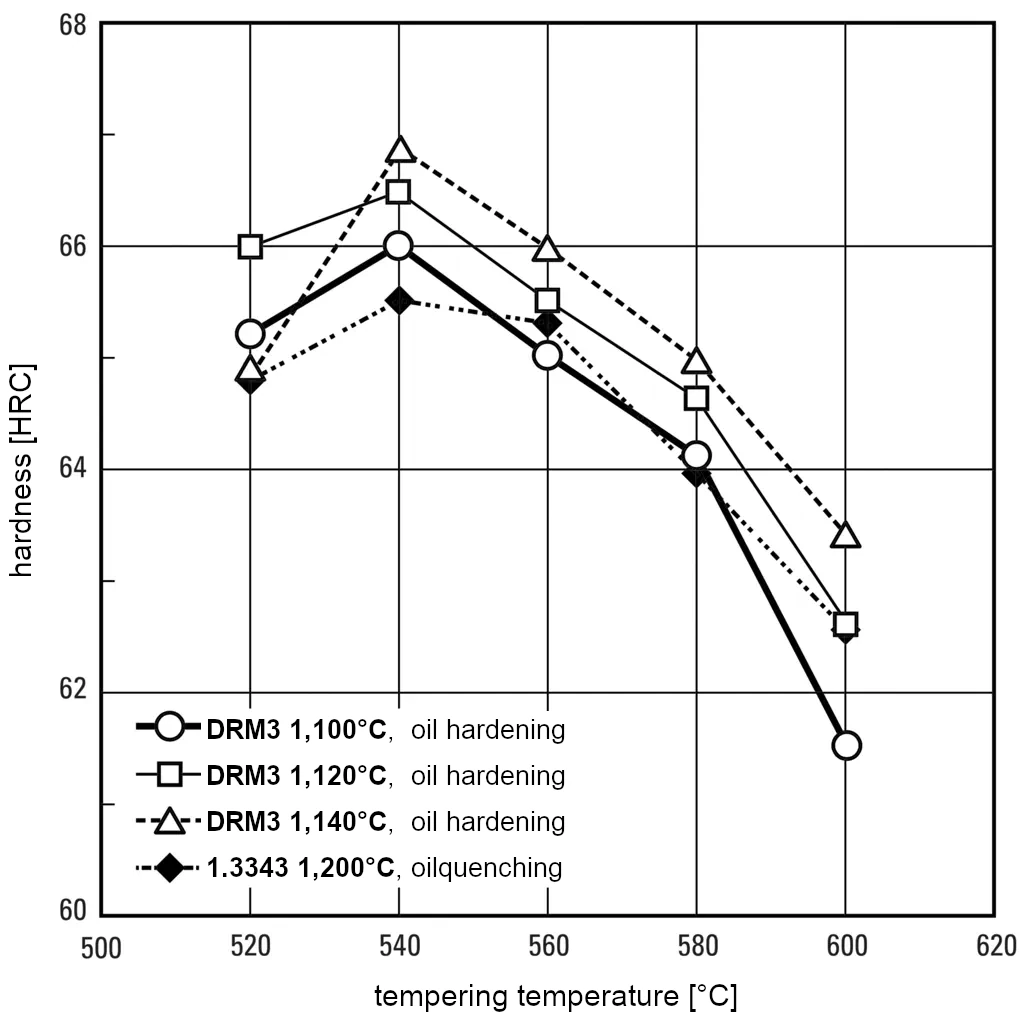

Tempering treatment

Specimen: square 15 mm, oil quenching, tempering with air cooling

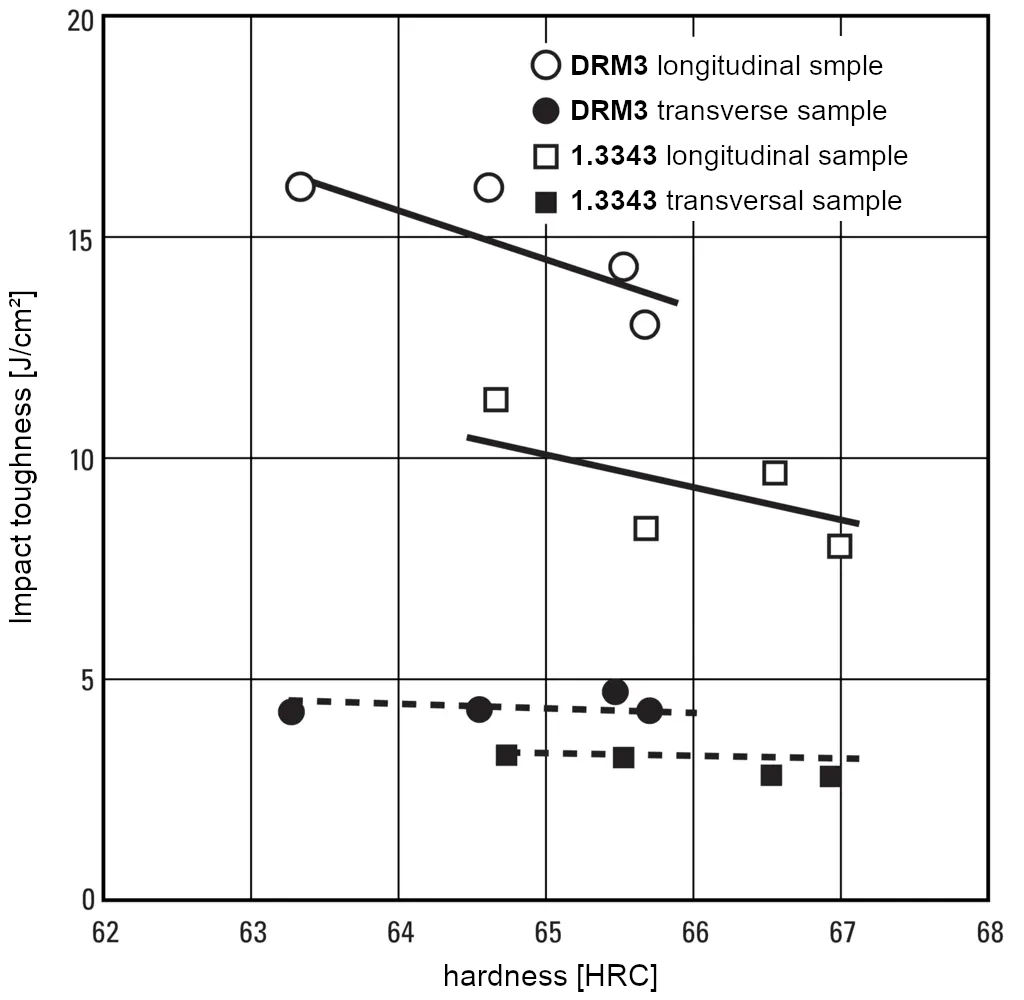

Impact toughness

Specimens: taken from bar steel, in the center of ∅ 100 mm, U-notched specimen

	Heat treatment
	Hardening	Tempering
DRM3	1,140°C, oil hardened	540 - 600°C, double tempered
1.3343	1,210°C, oil hardened	540 - 600°C, double tempered

Hardness at elevated temperatures

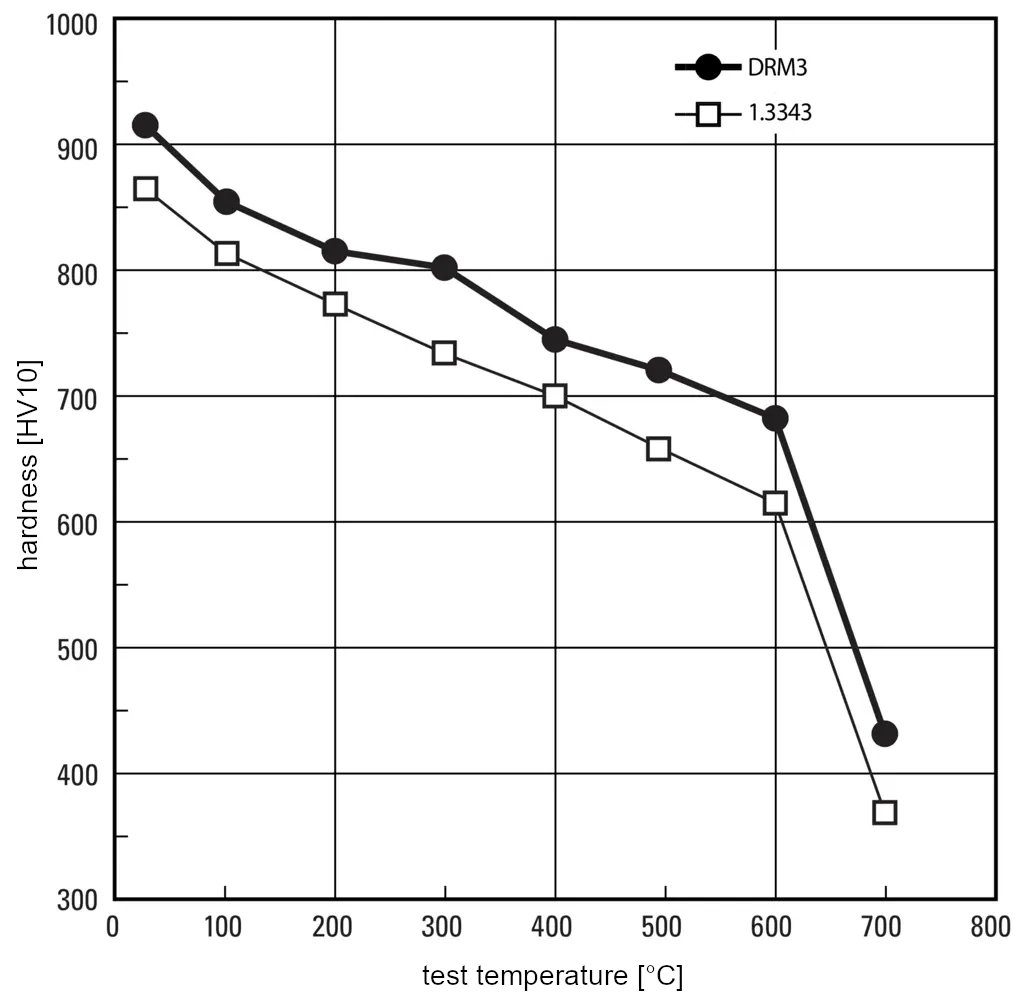

Hardness of the matrix high-speed tool steel DRM3 at elevated temperatures

	Heat treatment
	Hardening	Tempering
DRM3	1,140°C, oil hardened	560°C, double tempered
1.3343	1,200°C, oil hardened	580°C, double tempered

Fire crack resistance

Specimen: ∅ 15 mm, 10 mm thick

Heat check resistance of the matrix high-speed tool steel DRM3

	Heat treatment
	Hardening	Tempering
DRM3	1,120°C, oil hardened	560 - 620°C, double tempered
1.3343	1,200°C, oil hardened	560°C, double tempered
Test method	Heat inductively 1,000x to 600°C and cool to 20°C

Fatigue strength / Material fatigue

Specimens: from the center of a bar steel ∅ 100 mm

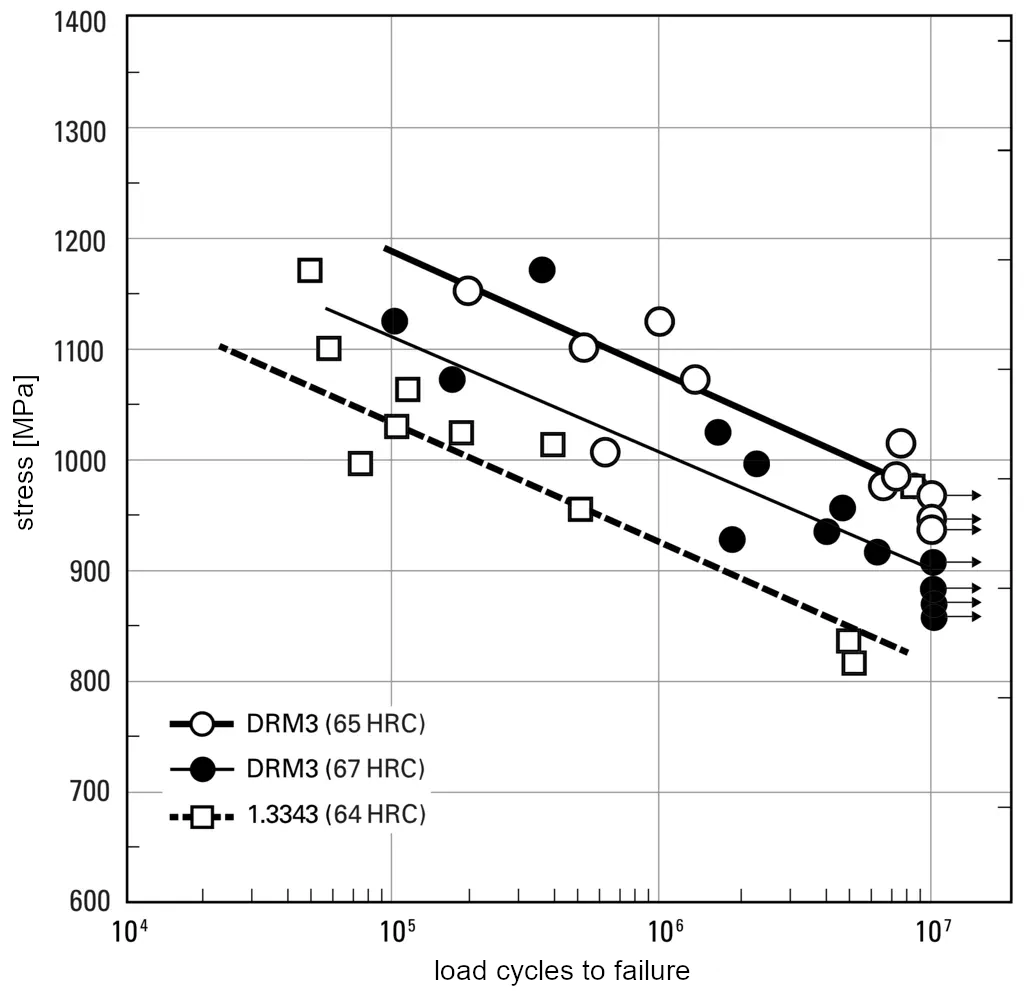

Fatigue strength of the matrix high-speed tool steel DRM3

	Heat treatment
	Hardening	Tempering
DRM3 (65 HRC)	1,100°C, oil hardened	560°C, double tempered
DRM3 (67 HRC)	1,140°C, oil hardened	550°C, double tempered
1.3343	1,140°C, oil hardened	560°C, double tempered
Test method	Wöhler test at room temperature

Dimensional change during hardening

Specimens: bar steel ∅ 100 mm x 60 mm length

Dimensional change of the matrix high-speed tool steel DRM3 during hardening

	Heat treatment
	Hardening
DRM3	1,140°C, hardened in salt bath

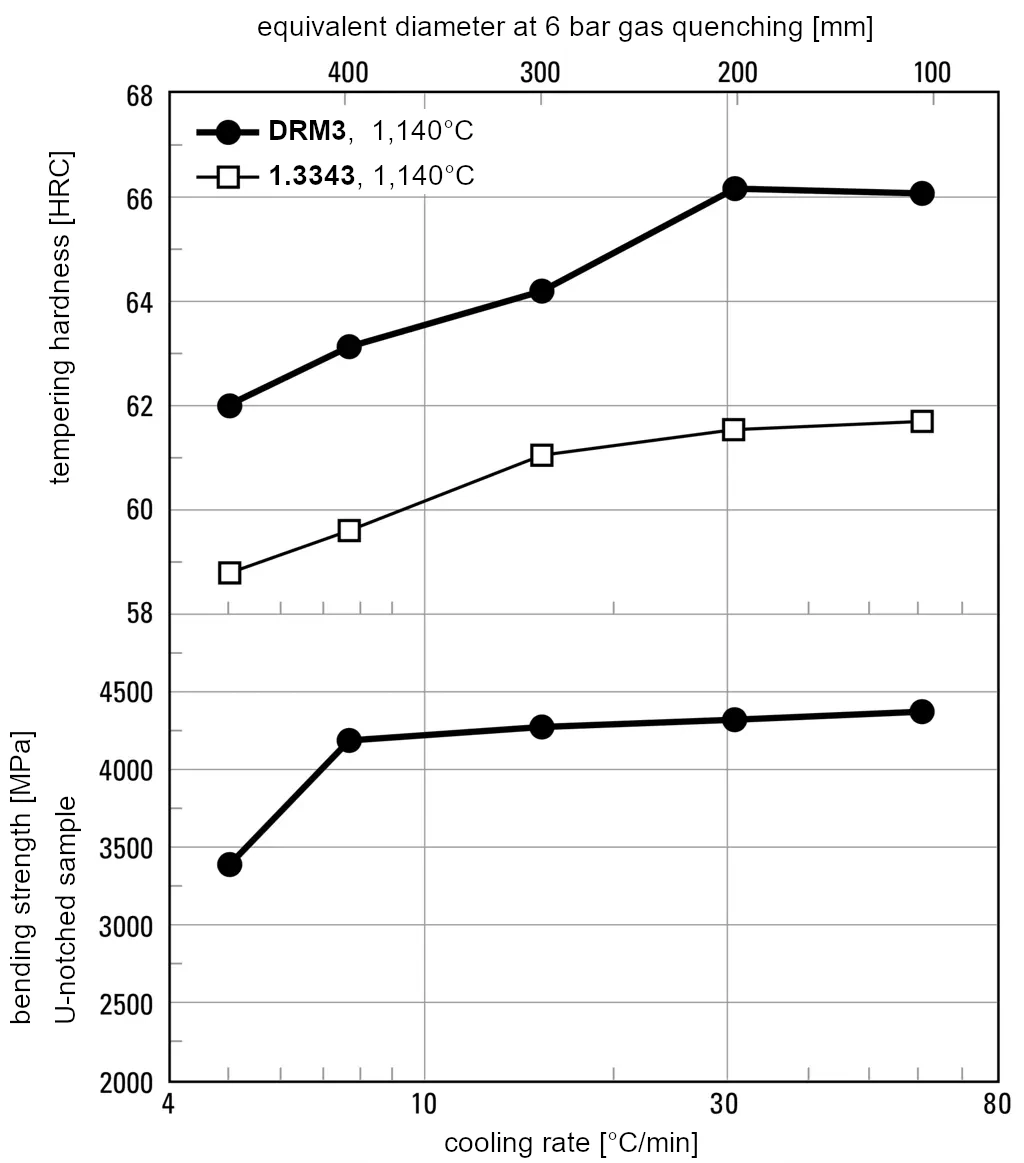

Hardenability

Influence of cooling rate on toughness

Continuous cooling transformation (CCT) diagram

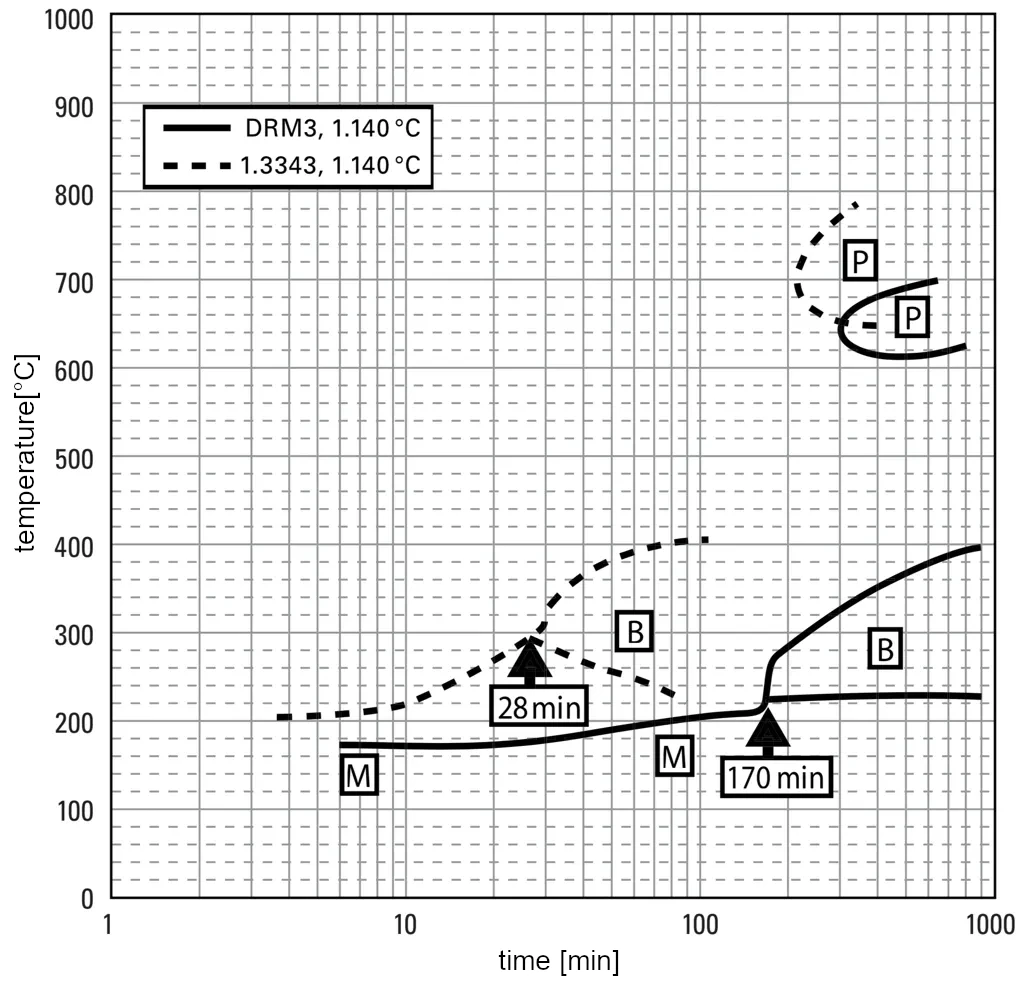

TTT diagram of the matrix high-speed tool steel DRM3

Hardening process

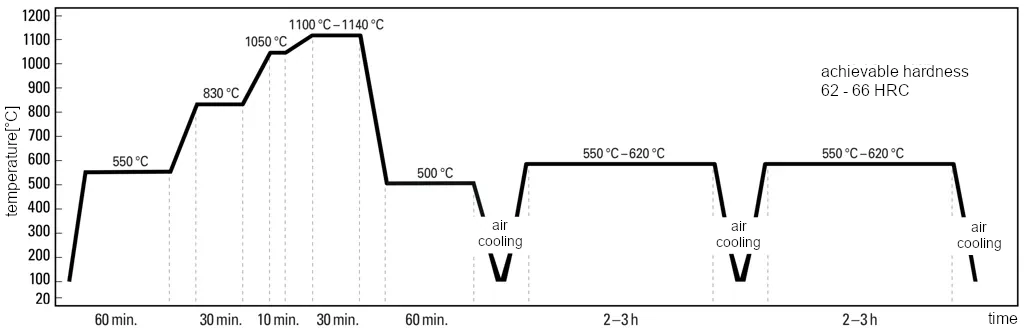

Salt bath

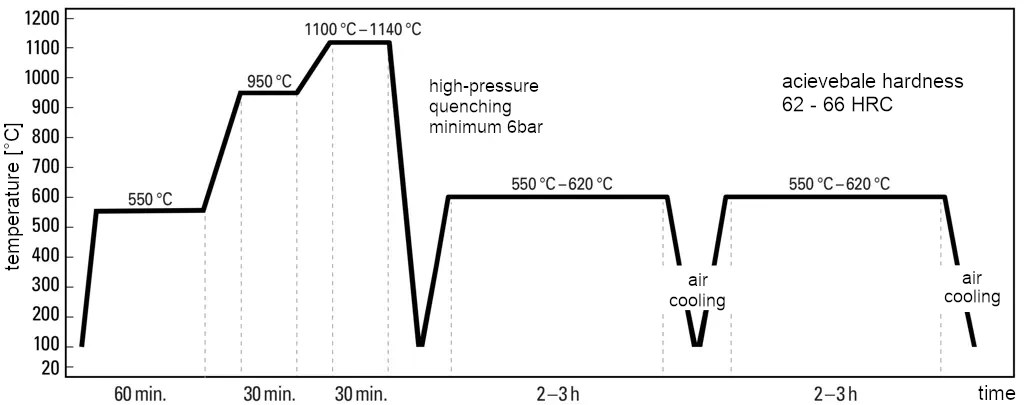

Vacuum

Transformation temperatures:

AC₁ = 830°C, Ms = 175°C

The hardening temperature of DRM3 is 1,100 – 1,140°C

	Salt bath	Vacuum
Thickness [mm]	Soaking times [min]	Soaking times [min]
to 12	8 - 10	20 - 30 per 25 mm of thickness
to 25	10 - 15
to 36	15 - 20
to 50	20 - 25
to 100	30 - 40	10 - 20 per 25 mm of thickness
above 100	30 - 40	10 - 20 per 25 mm of thickness

Nitriding

Example of the microstructure of a nitrided surface after the PS process from Daido Amistar.

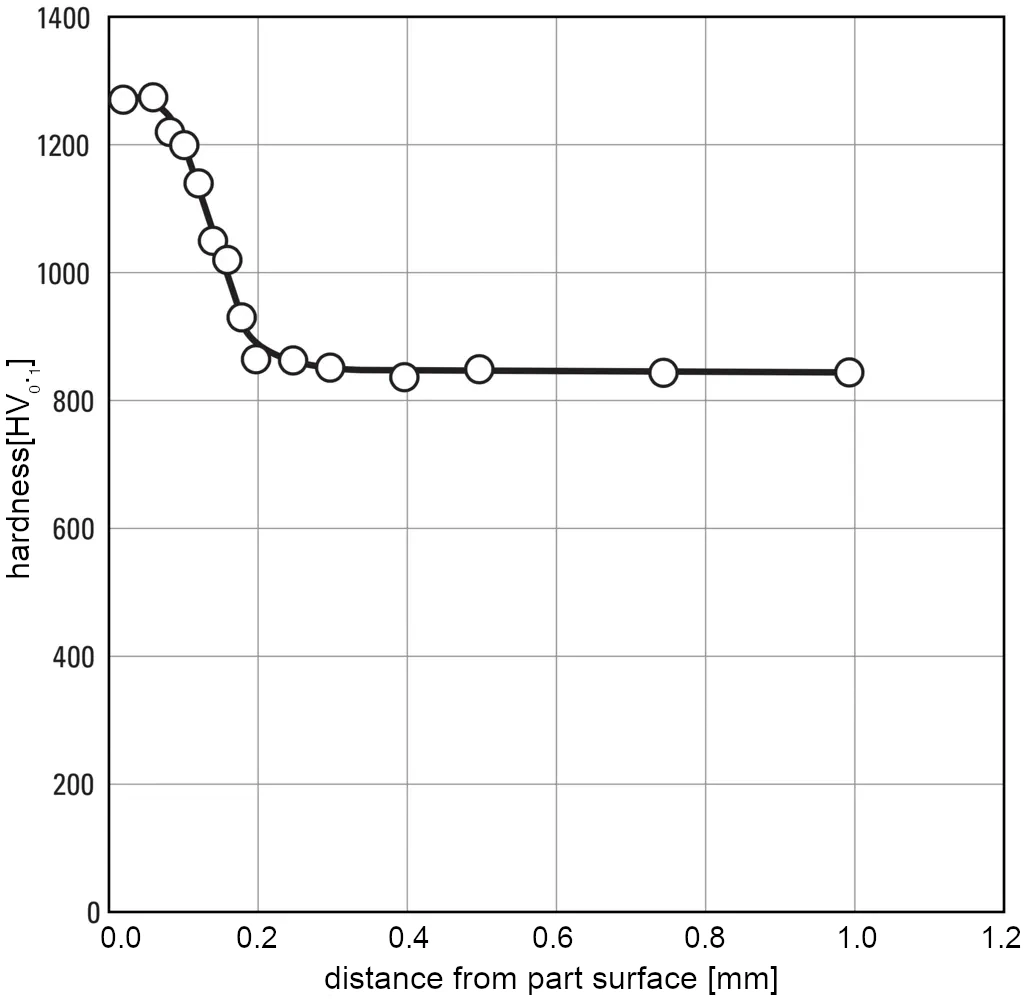

Hardness profile after nitriding

The surface hardness reaches 1,280 HV with NHD = 0.2 mm.

The values given are always representative technical values based on our investigations. Unless otherwise stated, they do not constitute guarantees. Please consult us for individual cases.
